The complexity comes from precision, not electrical theory. You're cutting masonry, routing cable through finished structures, and making outdoor connections that have to survive years of rain, sprinklers, and freeze-thaw cycles. Get any of that wrong, and you end up with dim fixtures, water-damaged wiring, loose lights that become trip hazards, or a hardscape surface that needs to be reopened.
This guide walks through planning, wiring, fixture installation, and testing, plus where the line sits between a reasonable DIY project and a job for a licensed professional.
Key Takeaways
- Low-voltage systems are more DIY-accessible than line-voltage work, but local code still governs what's allowed.
- Design lighting before hardscape is built; retrofits mean more cutting and surface repair.
- Waterproof, listed connections aren't optional. Electrical tape is not a substitute.
- Test the full system before backfilling trenches or resetting capstones.
- Voltage drop, loose connections, and moisture intrusion cause most post-installation failures.
Installation Guide for Hardscape Lighting

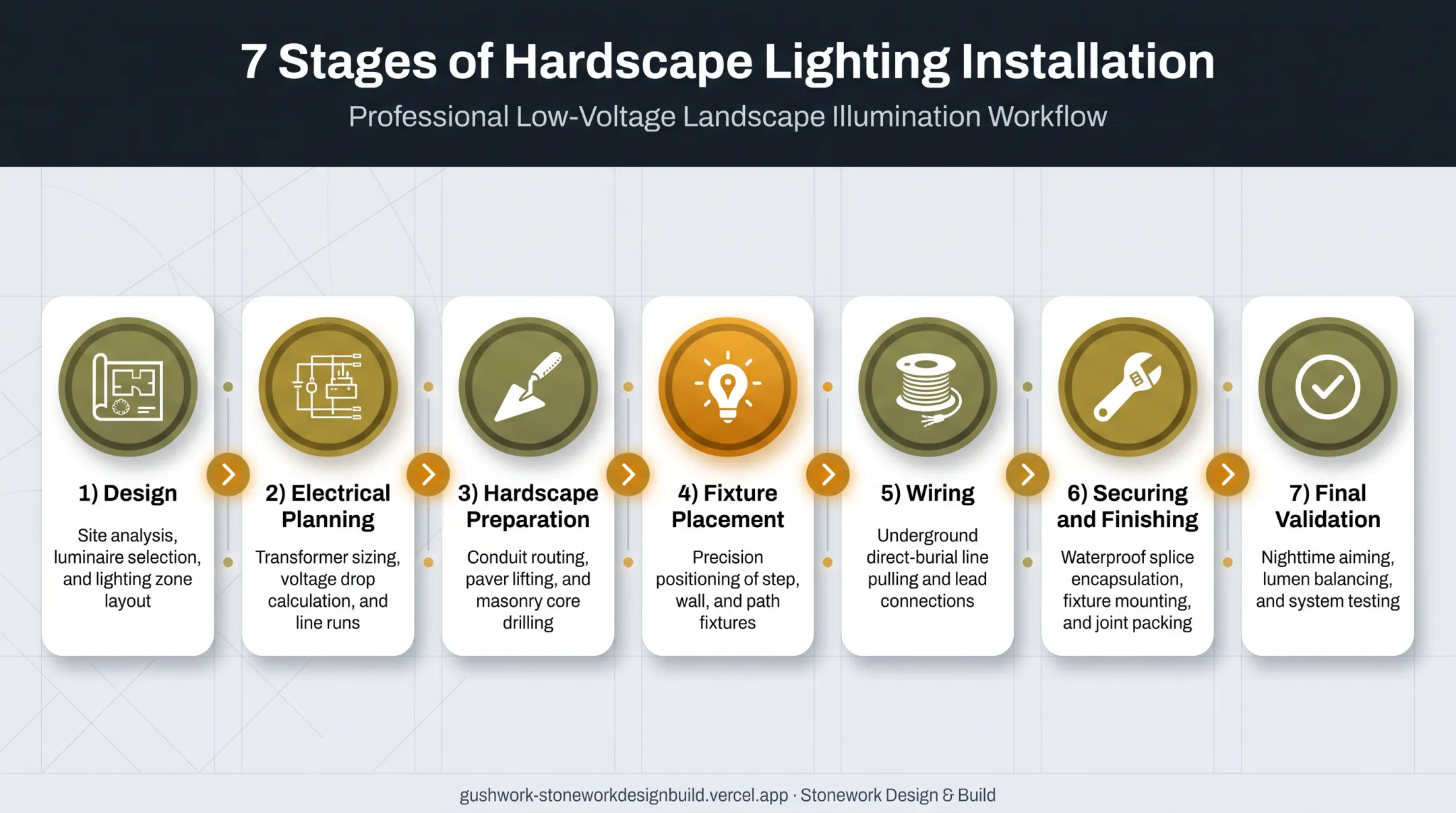

A complete hardscape lighting installation breaks into seven stages. Skipping steps is how projects end up with rework.
A complete hardscape lighting installation breaks into seven stages. Skipping any of them is how projects end up with rework:
- Design
- Electrical planning
- Hardscape preparation
- Fixture placement
- Wiring
- Securing and finishing
- Final validation
The skill level required depends entirely on where you're working. A shallow garden bed edge is forgiving. A stairway, retaining wall cap, pool surround, or finished paver surface is not. Mistakes there mean cutting into materials that are expensive and hard to replace. Complex retrofits on finished hardscape, pool surrounds, or structural walls are often better handled by a licensed outdoor contractor.
Prerequisites and Safety Considerations
Before buying a single fixture, confirm what you're actually working with:
- Structure type — new construction versus an existing wall, patio, or steps that can't be disturbed without repair
- Surface material — pavers, poured concrete, natural stone caps, or soil
- Drainage conditions — especially on retaining walls, where routing cable through the reinforced soil zone can interfere with drainage Next, check system compatibility: fixture voltage, transformer output, total connected wattage, cable type, connector requirements, and whether fixtures are rated for under-cap, step, paver, or surface mounting. Then handle compliance. Local rules govern low-voltage installations, GFCI protection, burial depth, permits, and pool-area work. The authority having jurisdiction has final say, not a generic online rule. Call 811 (or your state's 811 center) a few business days before digging so utility locations get marked. This is a free national service required before excavation work. Stop working immediately if you encounter:
- Unidentified underground utilities
- Damaged or wet electrical components
- Unstable masonry or cracked capstones
- Exposed line-voltage conductors
- A design requiring structural cutting beyond your skill level
Tools and Parts Required
Most installations need a similar core kit:
- Outdoor-rated hardscape fixtures (under-cap, step, paver, or path style)
- Compatible LED lamps or integrated LED fixtures
- Direct-burial-rated low-voltage cable
- Transformer sized for your total load
- Sealed, listed waterproof connectors
- Protective conduit or sleeving
- Mounting hardware and masonry adhesive
- Replacement capstone or joint material if any surface gets disturbed Core tools include:
- Tape measure and marker for layout
- Wire strippers and cutters
- Voltage tester or multimeter
- Basic hand tools for mounting fixtures Add masonry-cutting tools only if you are qualified to use them safely near finished structures. Substitutes are fine when they meet the fixture manufacturer's electrical and weatherproofing specifications.
Plan the Layout and Select Fixtures
Break the property into functional zones: steps, walkways, retaining walls, seat walls, patios, outdoor kitchens, pool edges, and architectural focal points. Each zone needs a different lighting job:
- Safety lighting — steps, transitions, walkway edges
- Task lighting — outdoor kitchens, seating areas
- Accent lighting — walls, plantings, focal points
- Ambient illumination — general patio or lounge areas Match fixture type to the application. Under-cap or wall lights suit retaining and seat walls. Step lights handle stairs. Paver or in-grade fixtures work where flush mounting matters. Spotlights and downlights cover trees, architecture, or elevated features. Sketch fixture spacing, beam direction, cable routes, transformer location, and control zones before you buy anything. Use the manufacturer's spacing guidance for your specific fixtures rather than generic rules of thumb, since output and beam angle vary by product. To size your transformer, add up each fixture's wattage (or VA). Total connected load should stay under the transformer's rated wattage, with headroom left for future additions. A system pulling 300 VA needs a transformer rated above 300 watts, not exactly 300.
Prepare the Hardscape and Route the Cable
For new construction, this step is simple: coordinate sleeves, conduit, fixture recesses, and service loops before capstones, pavers, or mortar go down. Every hour spent on this at the planning stage saves cutting later. For an existing wall or patio, the retrofit sequence looks like this:
- Protect or carefully remove the relevant capstone or surface section
- Create a controlled cable path that avoids sharp masonry edges
- Route the cable, keeping it clear of drainage low points
- Plan how the surface resets without pinching the cable underneath Route direct-burial cable through a protected path, checked against utility markings first. Follow your local burial depth and protection requirements, since these vary by cable type, voltage, and jurisdiction rather than following one universal number. Leave serviceable access at connections and fixture locations. If every splice is buried permanently under mortar or backfill, future troubleshooting means tearing out finished hardscape.
Install Fixtures, Connections, and Controls
Position each fixture at its planned location. Step and walkway lights need to stay clear of foot traffic; recessed or paver fixtures should sit flush if the product is designed that way. Secure each fixture using the manufacturer-approved bracket, anchor, or adhesive method. Check level, aiming angle, and consistency across the run before anything gets permanently closed in. Connect fixtures with outdoor-rated, sealed waterproof connectors listed for direct burial and wet locations. Electrical tape over a twisted splice is not a waterproof connection, no matter how many layers you wrap. It fails under soil moisture and irrigation exposure faster than most homeowners expect. Connect the cable to the transformer and any controls only as the product instructions and local code permit. Line-voltage work, or anything beyond your comfort level, belongs with a licensed electrician. Before backfilling, resetting caps, or sealing joints: energize the system and inspect everything. Every fixture, cable path, connection, and control setting gets checked while it's still accessible.
Post-Installation Checks and Validation
Walk the site and check for the obvious first — fixtures secure, aligned, protected from foot traffic, with no exposed conductors anywhere. Then test operation twice: once in daylight to catch physical issues, and again after dark to evaluate actual performance. Confirm:
- Every fixture turns on
- Illumination is even across the run
- Glare is controlled, not aimed into windows or seating
- Step and transition lighting is clearly visible If lights near the transformer look fine but distant fixtures look dim, you're probably dealing with voltage drop. Measure voltage at the transformer and at the farthest fixture on each run, and compare against the manufacturer's acceptable range for that specific product. Before you close anything up permanently, photograph every cable route and connection location. Record fixture and transformer specs, and keep the manuals. Future maintenance is far easier with documentation than with guesswork.

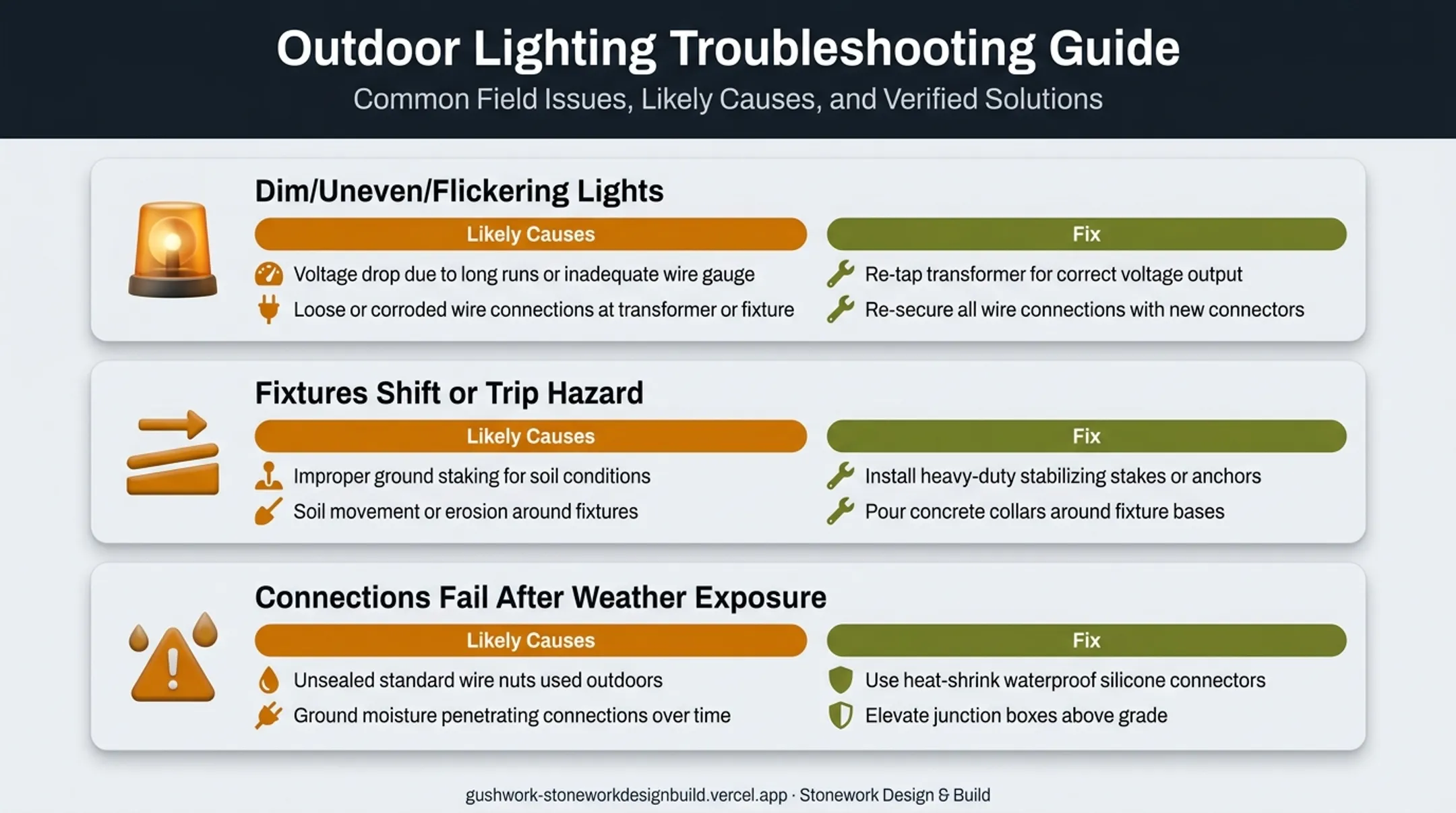

Common Installation Problems and Fixes
Lights Are Dim, Uneven, or Flicker
Fixtures near the transformer work fine while distant ones look dim, or the whole system flickers.
Likely causes:
- Voltage drop over long cable runs
- Overloaded or mismatched transformer
- Loose connections
- Moisture inside a splice
Fix:
- Verify the manufacturer's voltage and load specs
- Test the circuit methodically from the transformer outward
- Inspect every waterproof connection
- Redesign or split the circuit if one run cannot carry the load
Fixtures Shift or Become a Trip Hazard
Step lights, paver lights, or under-cap fixtures move after installation, or stop sitting flush with the surrounding surface.
Likely causes:
- Unstable base prep or weak mounting
- Ground settlement
- Cable pressure pushing on the fixture
- Backfill finished before final alignment was checked
Fix:
- De-energize the system
- Correct the base or mounting method
- Protect the cable from pressure points
- Realign the fixture and retest before restoring the finished surface
Connections Fail After Weather Exposure
One fixture (or a whole section) stops working after rain, irrigation cycles, or seasonal weather shifts.
Likely causes:
- Non-rated connectors or incomplete sealing
- Damaged cable insulation
- Pooling water
- Splices buried in a low drainage point
Fix:
- Isolate power first
- Replace damaged parts with outdoor-rated components
- Improve drainage around the connection
- Relocate splices somewhere serviceable
Pro Tips for Installing Hardscape Lighting Effectively
A few habits separate lighting that lasts from lighting that needs constant fixing:
- Design before you build. Coordinate fixture recesses, cable sleeves, drainage, and electrical access with wall and paver construction so you avoid visible wiring and cutting into finished materials later.
- Layer your lighting. Combine safety-focused step and path lights with subtle accent or under-cap lighting. Aim fixtures at surfaces, not at seating areas or approaching foot traffic.
- Build in maintenance access. Leave service loops where the design permits, label circuits by zone, and photograph concealed cable routes before covering them.
Some projects call for a specialist:
- Line-voltage connections or work that needs permits
- Extensive masonry cutting into finished walls or pavers
- Engineered, unstable, or hillside retaining walls
- Hillside drainage, grading, or pool-adjacent conditions
- Utility conflicts that affect cable routes or transformer placement
When those conditions show up, hardscape and lighting work better as one coordinated scope—not fixtures bolted on after the walls are done.
For larger residential or hillside projects across Los Angeles and Ventura counties, Stonework Design & Build builds low-voltage lighting into the hardscape itself and provides free on-site project estimates.
Conclusion
Installation quality determines whether hardscape lighting looks good for one season or performs reliably for years. The non-negotiables are consistent:
- Correct system sizing
- Careful cable routing
- Weatherproof connections
- Stable fixture mounting
- Full testing before anything gets closed up
Plan lighting alongside your hardscape whenever the project allows it. When the work touches structural walls, line voltage, utilities, pools, or hillside grading, bring in a licensed contractor or electrician rather than working around the problem.
Stonework Design & Build installs low-voltage lighting with hardscape, pool, and outdoor living work under one contract, so the lighting is planned with the rest of the build rather than added as an afterthought.
Frequently Asked Questions
Do you need an electrician to install hardscape lighting?
Most low-voltage hardscape systems can be homeowner-installed, while line-voltage connections usually need a licensed electrician. Confirm local codes, permit rules, GFCI requirements, and manufacturer instructions before you start.
What are the best hardscape lights?
The right fixture depends on the job. Under-cap lights suit walls, step lights handle stairs, paver or in-grade fixtures work for flush surfaces, and outdoor-rated fixtures belong in any exposed location.
How much does it cost to install hardscape lighting?
Costs vary widely with fixture count, fixture type, transformer sizing, cable routing, and whether it's new construction or a retrofit. National averages for outdoor lighting installation typically fall between $3,000 and $6,000, but local labor rates and access difficulty shift that range significantly.
How deep should hardscape lighting wire be buried?
Burial depth depends on the cable type, voltage, location, and adopted local code, along with manufacturer instructions. Verify requirements before digging, and add protective conduit in high-traffic or vulnerable areas regardless of the minimum depth.
Can hardscape lighting be installed on an existing retaining wall?
Yes, but retrofitting takes more care: capstones may need careful removal, cable channels have to avoid the wall's reinforced soil zone, and connections need to stay serviceable. Get professional input if cutting could affect wall stability or drainage.
