Instead of just picking a pool shape and size, you're now coordinating elevations, soil behavior, runoff paths, and structural support before anyone breaks ground. Homeowners in this position usually land on the same questions: Do I actually need a retaining wall? What material makes sense? How do drainage and permits affect my timeline and cost?
This guide walks through those decisions in practical terms. It's not a substitute for a site visit. Every hillside lot behaves differently, and a qualified contractor and engineer need to evaluate your specific soil, grade, and drainage conditions before any wall type gets finalized.
Key Takeaways
- Retaining walls level the pool pad, hold back soil, and redirect runoff away from the pool and home
- Material, height, soil type, drainage design, and local permits drive the final budget
- Plan the pool, wall, grading, drainage, and planting as one system—not separate projects
- Site-specific evaluation beats any generic online cost figure
Do You Need a Retaining Wall for a Sloped Pool Yard?
Not every slope needs one. But once a yard has meaningful grade change, a retaining wall often becomes the piece that makes the whole project work.
Here's what a wall actually does for a hillside pool project:
- Manages elevation changes so the pool sits on a level, engineered pad instead of a compromised slope
- Holds back uphill soil that would otherwise creep, erode, or shift toward the excavation
- Creates usable flat space for the deck, patio, or seating area around the pool
- Reduces runoff risk by keeping water from sheeting downhill into the pool basin or equipment pad

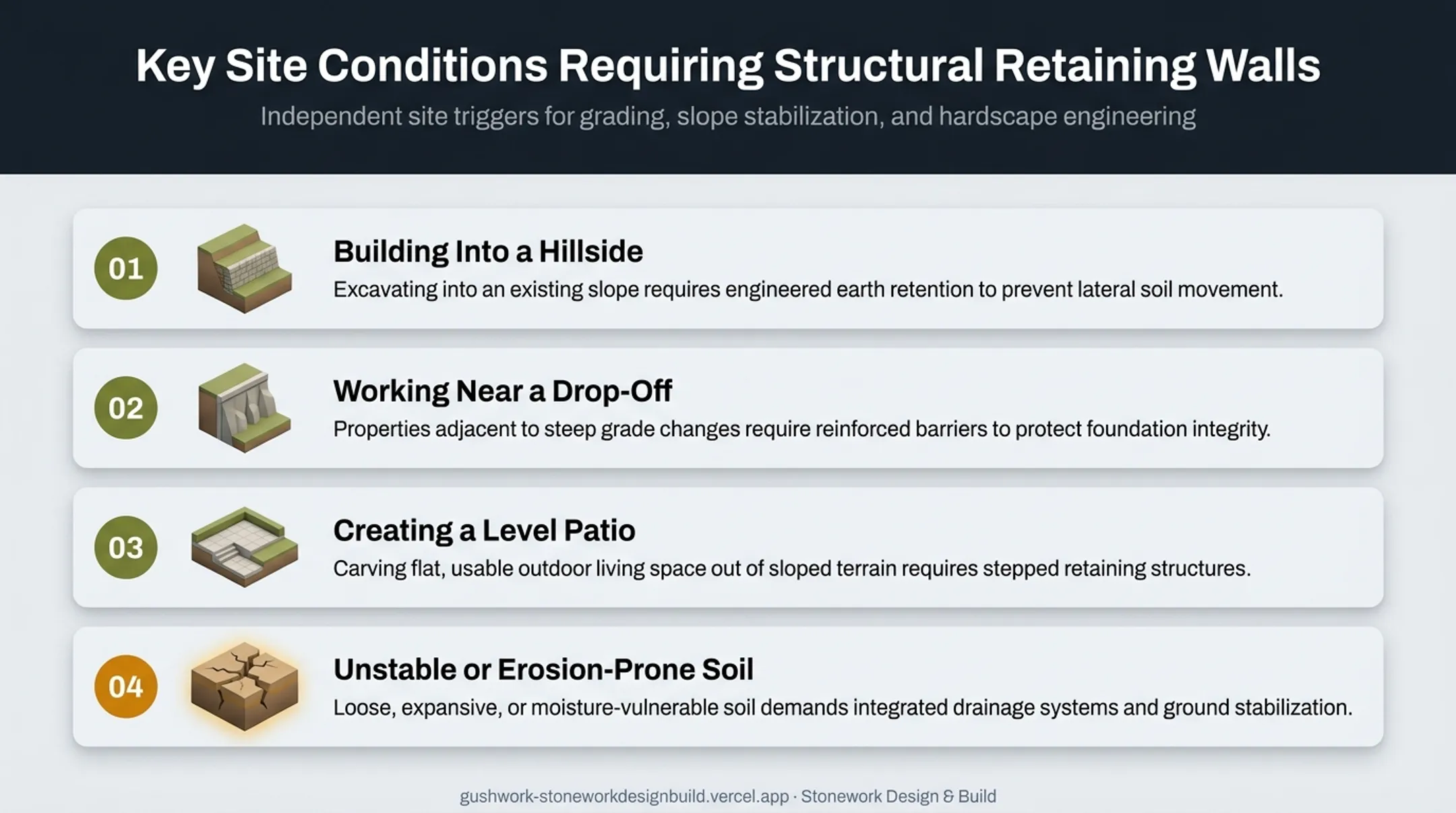

When a Wall Evaluation Gets Triggered
Certain site conditions almost always prompt a closer look at retaining structures:
- Building into a hillside where the pool cuts into higher ground on one or more sides
- Working near a drop-off where the downhill edge needs support
- Creating a level patio on a yard that currently slopes in multiple directions
- Unstable or erosion-prone soil that shows signs of movement, cracking, or past slope failure
According to Latham Pool, a slight slope is often handled through grading alone, while a steep incline typically calls for retaining walls or terracing. The line between "grade it" and "wall it" depends on more than what you can see standing in the yard.
Beyond the Visible Slope
The real decision hinges on factors that aren't obvious from a walkthrough:
- Proposed pool elevation relative to existing grade
- Soil composition and how it drains
- Groundwater movement or surface-water paths across the lot
- Property boundaries and setback requirements
- Site access for equipment and materials
- Proximity to neighboring structures or lots
Those details turn into practical questions on a site walk:
- Where does water flow across this yard during heavy rain?
- What's currently holding back the uphill soil, if anything?
- How will the pool shell be protected from lateral soil pressure?
- Would two shorter terraced walls work better than one tall wall?
Stonework Design & Build's site walk process reads grade, drainage, access, setbacks, and existing utilities before any wall concept gets proposed. That early read matters. A wall sized for the wrong soil condition is a callback waiting to happen.
That same walk also separates structural walls from design features. A seat wall, a low garden wall for planting beds, or a decorative stacked-stone accent can go in even when the site doesn't strictly require soil retention. Those are design choices. A functional retaining wall is an engineering requirement.
Pool Retaining Wall Materials and Design Options
Choose materials by matching structural demand, drainage behavior, and appearance to your slope and budget—not by chasing a single "best" option.
Comparing the Main Categories
| Material | Structural Notes | Typical Use Case |
|---|---|---|
| Poured reinforced concrete | High load capacity; long service life | Taller walls, tight footprints |
| Reinforced masonry (CMU) | Vertical reinforcement resists lateral soil pressure through the cores | Mid-height walls, versatile finishing |
| Segmental retaining wall (SRW) blocks | Gravity systems rely on unit weight; taller walls need geosynthetic soil reinforcement | Terracing, modular installation |
| Natural stone or boulders | Durable, high design flexibility | Hillside aesthetics, informal terracing |
| Stone veneer over structural wall | Veneer provides finish, not primary structure | Matching wall appearance to the home |
| Timber | Shorter lifespan than masonry or stone | Budget-conscious, lower-height applications |
Forbes Home reports poured concrete costs between $23 and $45 per square foot and can last up to 100 years. Wood walls cost less up front, but they wear out faster than masonry or stone.
Masonry Walls vs. Segmental Retaining Walls
These two systems get confused often, but they behave differently:
- Masonry walls use mortared block or poured concrete with steel reinforcement inside the cores. A footing anchors the wall against overturning and sliding.
- Segmental retaining walls stack dry (no mortar) interlocking units that rely on their own weight, block geometry, and — for taller walls — reinforced soil behind the face.
The Concrete Masonry & Hardscapes Association recommends a registered professional's engineered design for walls over 4 feet unless local code already requires it. On hillside lots, even a modest terrace can cross that threshold quickly.
Integrating the Wall Into the Design
Once the structural system is set, the wall should read as part of the pool and patio—not bolted onto the yard:
- Coping and decking that transition directly off the wall cap
- Built-in steps that double as wall terracing
- Planting beds set into or above the wall face
- Seat walls that combine structural support with usable seating
- Low-voltage lighting run into the wall face or cap
Stonework Design & Build typically builds these walls in CMU block, veneer stone, dry-stack, and flagstone caps so the finish matches the home instead of standing apart from it.
Water Features and Wall Coordination
Cascades, sheer descents, and deck jets often mount directly to a retaining wall or raised bond beam. Plan these details before the wall closes up:
- Waterproofing behind the finished face
- Plumbing and pump access routed before the wall closes up
- Electrical runs for lighting or feature controls
- Splash management so runoff doesn't undermine the footing

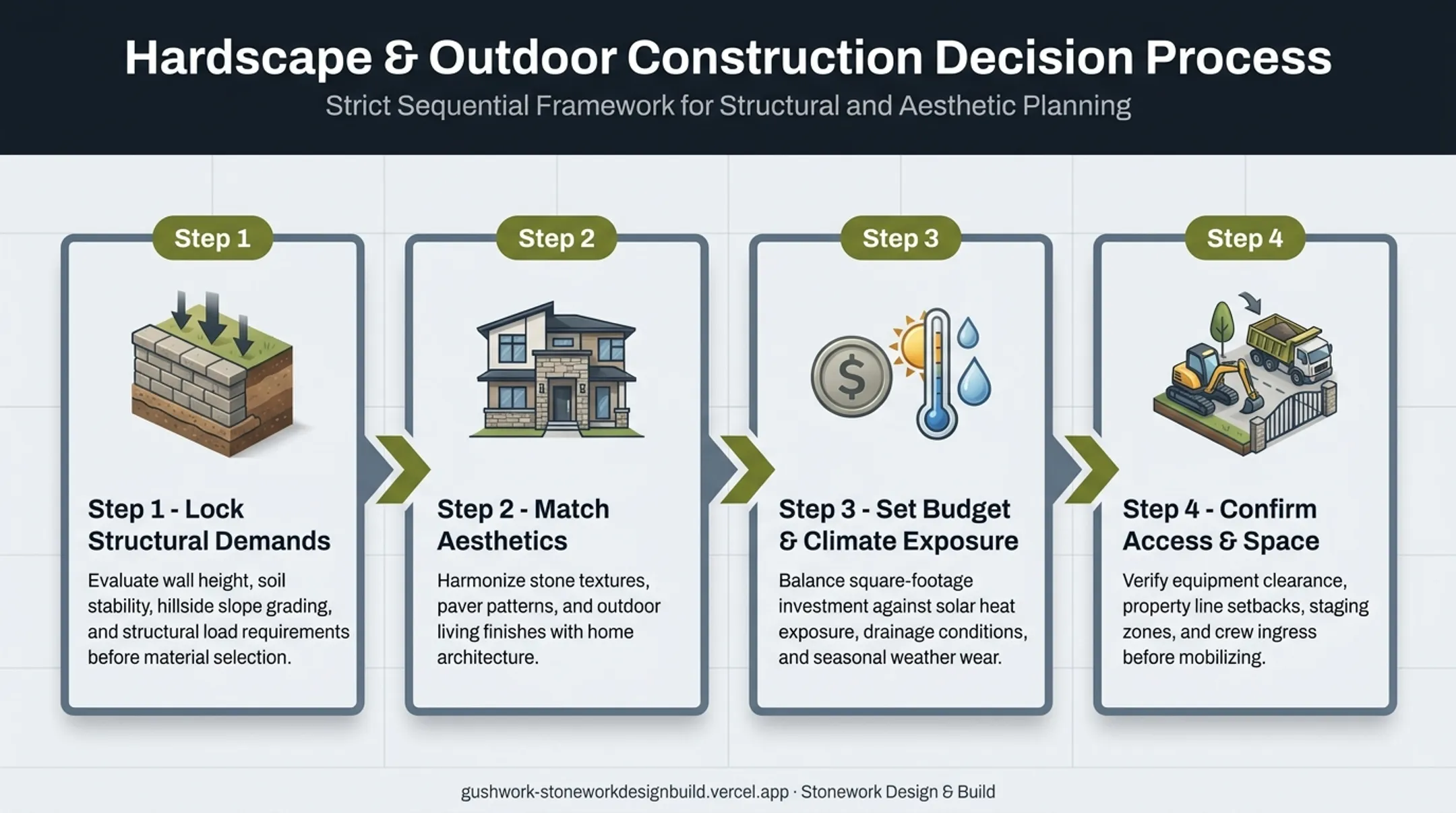

A Simple Selection Framework
Work through these in order, not simultaneously:
- Lock structural demands — height, soil type, and surcharge load
- Match aesthetics — home materials and overall style
- Set budget and climate exposure — sun, rain, and freeze-thaw where relevant
- Confirm access and space — how equipment reaches the wall location
Engineering, Drainage, Permits, and Construction Planning
This is where hillside pool projects either stay on schedule or stall out. Getting the sequence right matters more than getting any single decision perfect.

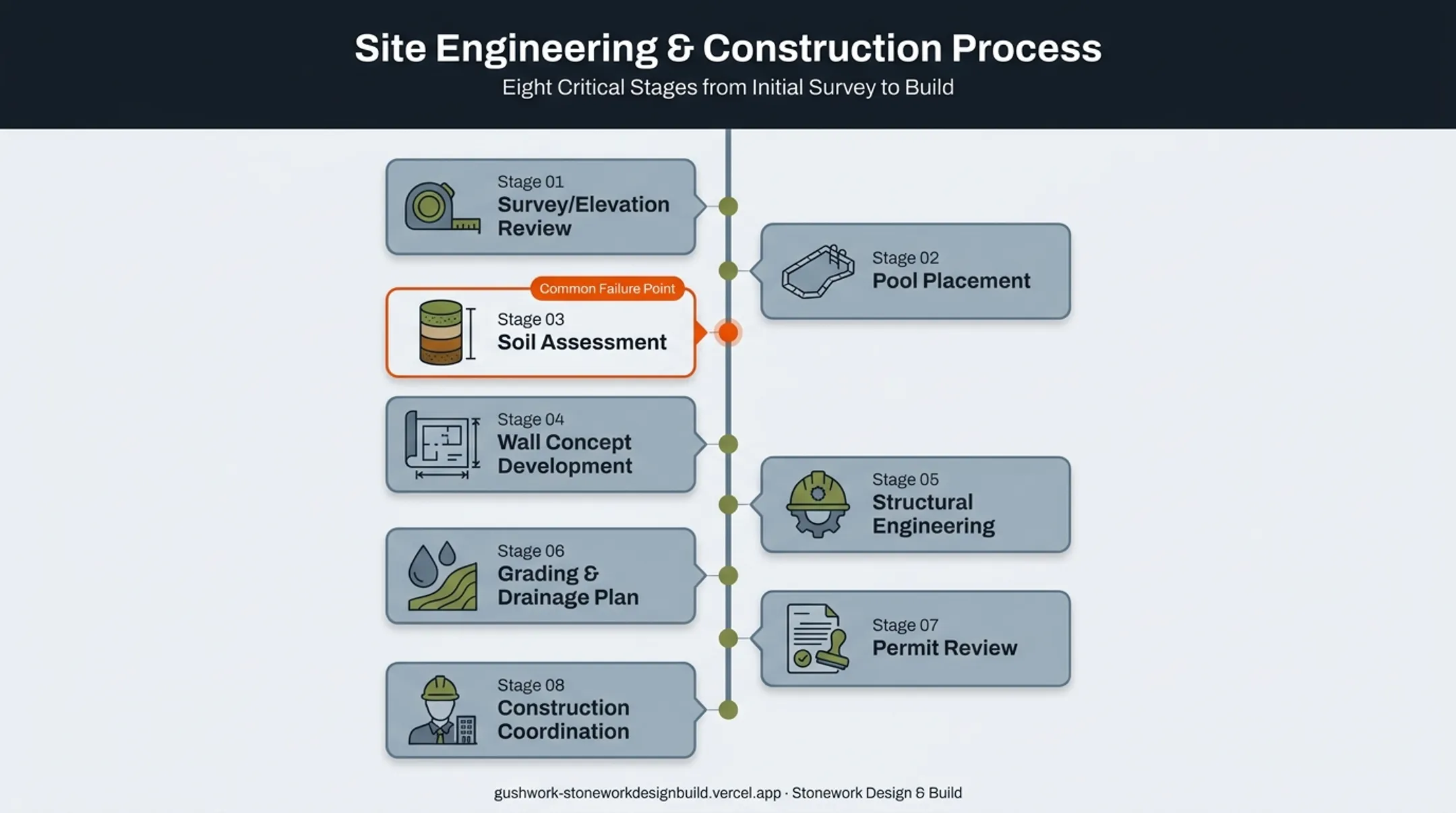

The Planning Sequence
A typical professional path looks like this:
- Survey or elevation review
- Proposed pool placement
- Soil and site assessment
- Wall concept development
- Structural engineering (when required)
- Grading and drainage plan
- Permit review
- Coordination with pool and landscape construction Skipping steps, especially soil assessment before finalizing the wall concept, is a common source of mid-build surprises.
Why Drainage Failures Happen
Water trapped behind a wall creates hydrostatic pressure the wall wasn't designed to hold. That pressure is one of the leading causes of retaining wall failure. A properly drained wall system typically includes:
- Free-draining backfill material behind the wall face
- Filter fabric where the design specifies it
- Perforated drainage pipe collecting water at the base
- Clearly located outlet points
- Surface swales or drains to catch water before it reaches the wall
- A lawful discharge point that doesn't dump water onto a neighboring property Stonework Design & Build's internal review flags two conditions behind almost every retaining wall failure the company has seen: missing or clogged drainage, and footing depth mismatched to soil and slope. Catch both in design review before permits lock the plan in place.
Permits and Local Requirements
Footings, reinforcement, setbacks, embedment, tiebacks, and maximum unengineered wall height all come from the specific engineered design and local code, not from a general online guide. Permits that may apply to a hillside pool project:
- The pool itself
- Retaining wall construction
- Grading and drainage work
- Structural elements
- Fencing and safety barriers
- Utility work
- HOA design review Local rules vary more than most homeowners expect. As a general model-code baseline, retaining walls not exceeding 4 feet measured from the footing bottom to the wall top are often exempt from permits, unless the wall supports a surcharge. Local jurisdictions frequently tighten that threshold near slopes, so verify current requirements with your building department before assuming a wall is exempt.
Construction-Stage Coordination
The build sequence typically runs:
- Excavation and protection of existing structures/utilities
- Foundation preparation
- Wall installation
- Pool excavation
- Backfilling and compaction
- Drainage testing
- Hardscape installation
- Final grading Stonework Design & Build runs projects through five stages:
- Site walk
- Design and estimate
- Permits and schedule
- Build
- Walkthrough Structure and hardscape go in first, then pool and finishes, then planting. The company pulls its own structural, pool, and grading permits, and starts engineering review early on sloped lots or raised structural decks. That order matters: elevation and drainage decisions for the wall directly shape how the pool gets placed and finished.
Cost Factors and How to Plan Your Budget
Retaining wall pricing is genuinely site-specific. Treat it as one line item inside your total pool and landscape budget, not a standalone number you can shop for in isolation.
What Actually Drives the Price
- Wall length, height, and terracing versus a single tall wall
- Material and finish selection
- Excavation volume, soil or rock conditions, and hauling distance
- Drainage system complexity
- Reinforcement and engineering requirements
- Permit fees and site access for equipment
- Pool elevation relative to grade
- Stairs, lighting, or water features tied into the wall

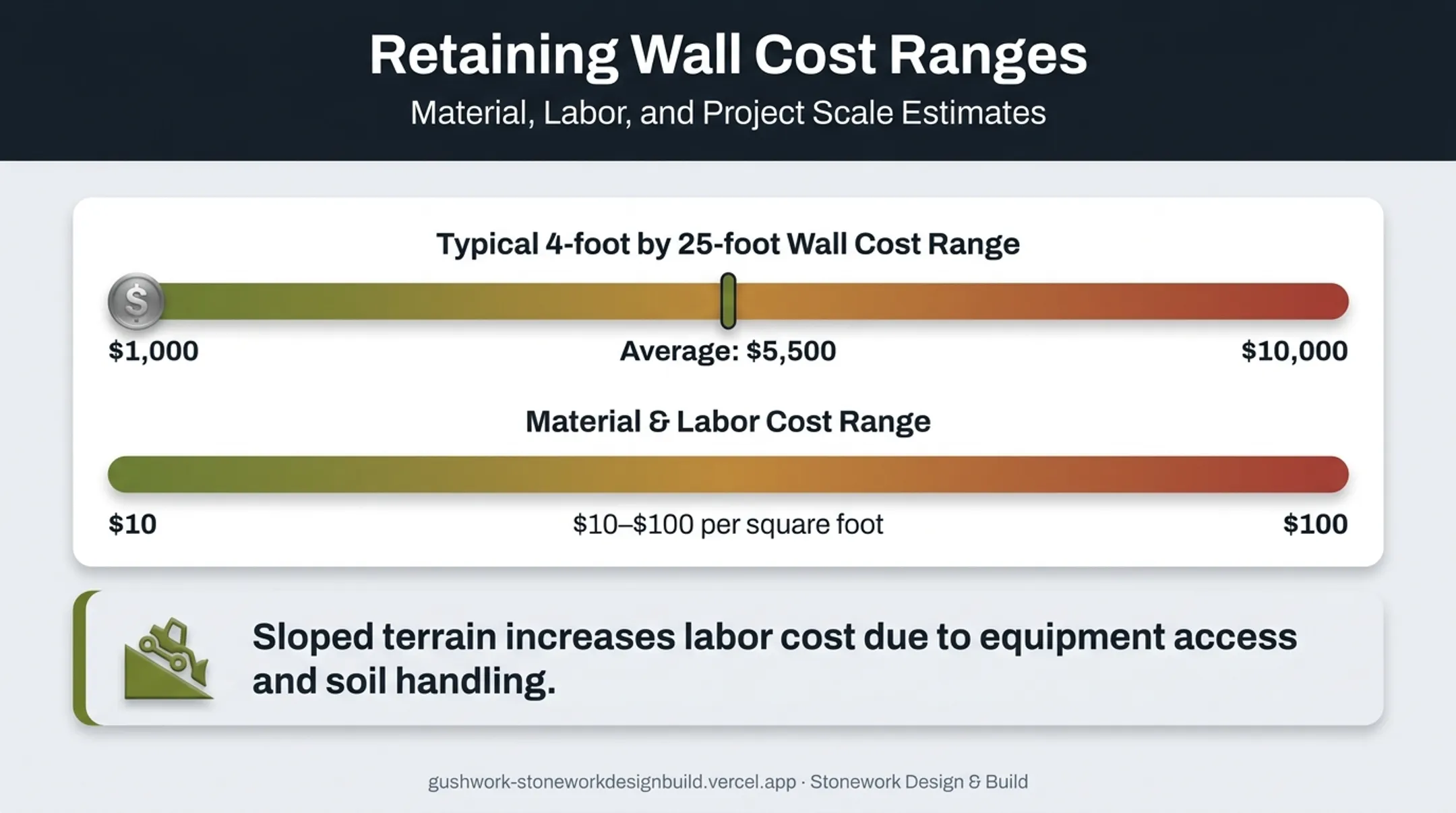

General Planning Ranges
Published national data gives a rough sense of scale, though local quotes vary significantly:
- Forbes Home reports a typical 4-foot by 25-foot retaining wall runs $1,000 to $10,000, averaging around $5,500.
- Most walls fall between $10 and $100 per square foot for materials and labor alone, excluding drainage and excavation.
- Sloped terrain tends to push labor higher, since equipment access and soil handling get more complex.
Treat these as planning ranges only. None of these figures is a firm quote for your property.
Preparing for an Accurate Estimate
Before requesting quotes, gather:
- A site survey or existing plans, if available
- Slope and elevation information
- Desired pool location
- Wall finish preferences
- Any access limitations
- Known drainage concerns
- HOA requirements, if applicable
Stonework Design & Build offers free on-site project estimates for homeowners in its Los Angeles and Ventura County service area, typically scheduled within one business day of a call. That walk covers grade, drainage, access, and setbacks, and results in a line-item scope.
Use it to narrow your numbers. It does not replace formal engineering, permitting, or a final construction proposal once scope is set.
Frequently Asked Questions
Can a retaining wall hold a pool?
A properly engineered retaining wall can support soil and stabilize a pool site, but it isn't the same as the pool structure. Site conditions, reinforcement, and local code determine what's required.
What can I use for pool walls?
Pool shell materials (like reinforced gunite or concrete) differ from retaining-wall materials. Retaining walls may use concrete, reinforced masonry, segmental blocks, natural stone, or veneer systems, depending on the specific design and soil conditions.
What is the wall around a pool called?
It depends on purpose: retaining wall (holds soil), bond beam (pool edge), coping (perimeter finish), seat wall (seating), or safety barrier (access control). These terms aren't interchangeable.
How do I know if my sloped yard needs a pool retaining wall?
Look at slope severity, proposed pool placement, excavation depth, soil stability, and runoff patterns. If any of these raise questions, a professional elevation and drainage assessment is the next step.
How much does a pool retaining wall cost?
Cost depends on wall dimensions, material, engineering requirements, drainage design, excavation, site access, and finish choices. A free on-site estimate is far more useful than a generic online price range.
